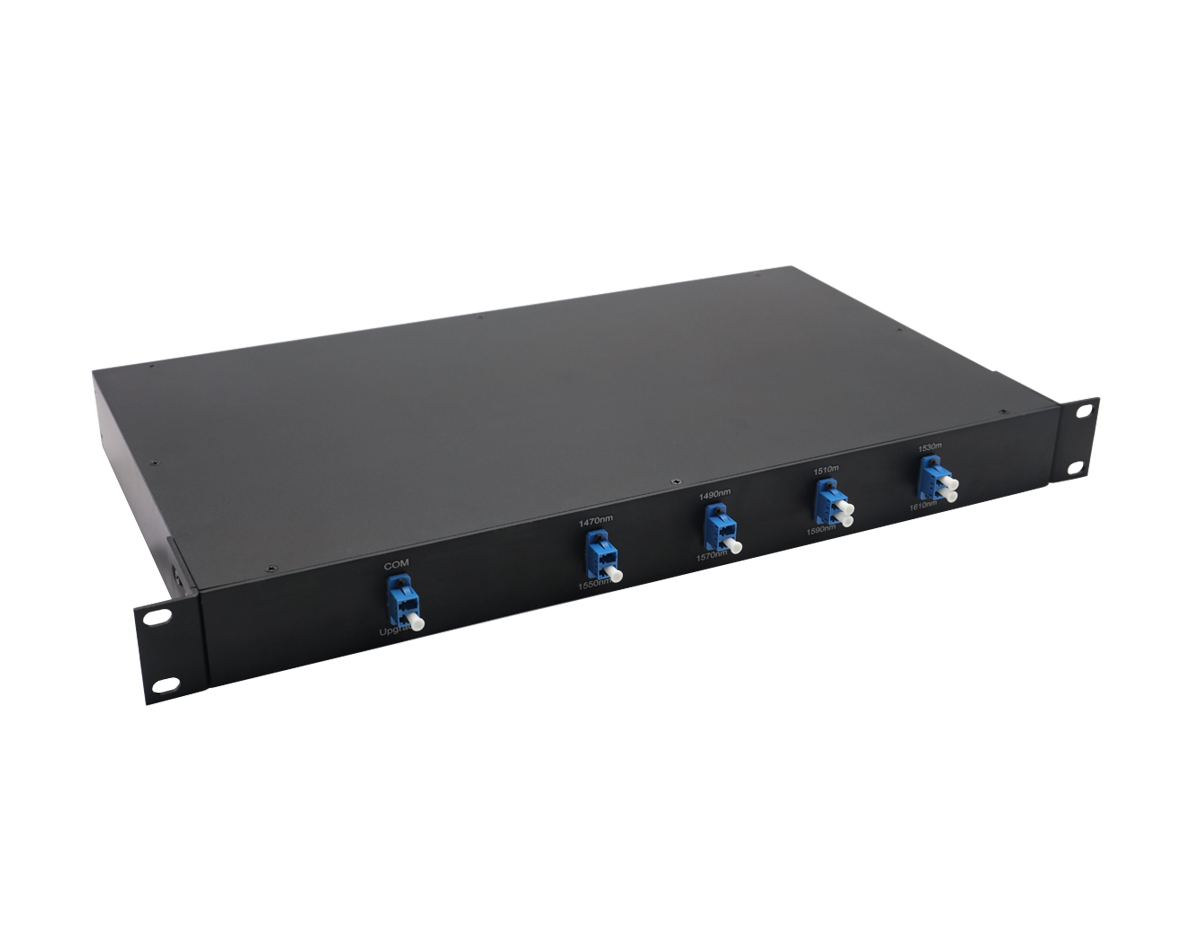

100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength

Brand Name : Linkopto , or OEM

Model Number : Li-8CH-DWDM-Mux ( Demux )

Certification : CE, FCC, ROHS, TUV, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, WU, PayPal, Moneygram, L/C

Supply Ability : 80,000 Channels per month

Delivery Time : 3-7 working days

Packaging Details : 1-2pcs per carton case for DWDM

Product Name : DWDM Mux Demux

Model Name : Li-8CH-DWDM-Mux ( Demux )

Channel Number : 8CH

Fiber Length : 1.5M or Customized

Wavelength : ITU Grid C-Band

Express Port : Customized

Monitor Port : Customized

Connector Type : LC, SC, FC, ST (UPC or APC)

Fiber Type : 900um, 2mm or 3mm fiber

Package type : ABS Plastic box, LGX box, 1RU Rackmount or Customized

Channel Space : 50GHZ, 100GHZ or 200GHZ

Contact Now

DWDM Mux Demux Module 100GHZ 8CH ABS box type with LC/UPC Connectors 900um Fiber

Description

DWDM system supports ultra-long-haul transmission via a single fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of up to 100G/200G per channel.The DWDM modules passively multiplex the optical signal outputs from 4 or more electronic devices, and send them over a single optical fiber and then de-multiplex the signals into separate, distinct signals for input into electronic devices at the other end of the fiber optic link. Our standard package types of DWDM MUX DEMUX are Field Module ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Cassette Box.

Features

>Low insertion loss

>Based on thin-film filter or AWG technology

>DWDM 100GHz or 50GHz ITU Channel Spacing,C17-C61 & H17-H61 , X channels over Single or Duplex fiber

>LC/SC/FC/ST, UPC/APC Interface are available

>Rate transparent for applications up to 10Gbps

>Monitor/Upgrade/1310nm Express port for external functions

>Completely passive, no electric power required

>Low-profile modular LGX box design optional, fits in LGX chassis

Applications

Ø DWDM System

Ø PON Networks

Ø CATV Links

Compliance

Ø Telcordia GR-1209-CORE-2001

Ø Telcordia GR-1221-CORE-1999

Ø ITU-T G.694.1

Ø RoHS

Specifications (1×N DWDM Mux/Demux Module)

Parameters
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.8 3.0 4.0 1.7 2.9 3.8
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U

Notes:
1) Specified without connectors.
2) Add an additional 0.2dB loss per connector.

Products Overview:

100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength

100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength100GHZ 8CH DWDM Mux Demux Module ABS Box Type ITU Grid C - Band Wavelength

Ordering Information:

DWDM X X XX X XX X X XX
Linkopto Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
DWDM L 1=100GHz 04=4 Channel M=Mux 21=Ch21 1=Bare fiber 1=1m 0=None
2=200GHz 08=8 Channel D=Demux …… 2=900um loose tube 2=2m 1=FC/APC
5=50Ghz 16=16 Channel 34=Ch34 3=2mm Cable S=Specify 2=FC/PC
…… 4=3mm Cable 3=SC/APC
50=Ch50 4=SC/PC
…… 5=ST
6=LC
S=Specify
